High-Precision Induction Soldering Machine for RF Connectors
Overview of the ISM Maxwell System
ISM Maxwell is a high-end, standalone induction soldering system engineered specifically for precise and repeatable soldering of RF and SMA connectors. The machine combines a servo-driven gantry, a CEIA induction heating system, high-speed temperature feedback, and advanced machine vision to deliver a stable, traceable, and fully controlled soldering process. With its compact footprint of only 1 × 1 meter, ISM Maxwell fits easily into modern production environments while offering capabilities normally found in large automation cells.
Precision Motion Control
At the core of the system is a rigid gantry motion platform controlled by servo motors. This architecture ensures extremely accurate positioning of the induction, which is crucial for consistent induction heating. The mechanical stability of the gantry guarantees repeatable thermal behavior from cycle to cycle.
Advanced Induction Heating Technology

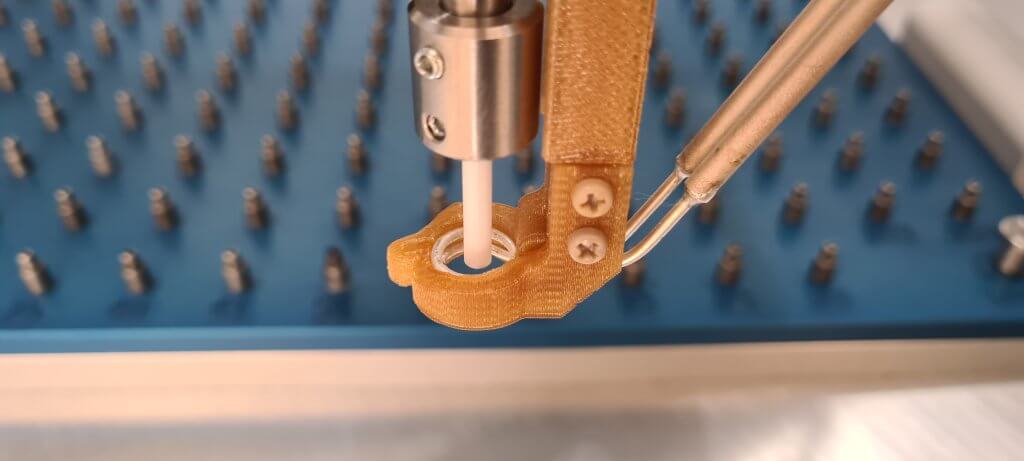

The induction heating module is built around CEIA components, integrated directly into the machine structure. Energy Waves designed a dedicated induction coil that ensures balanced and uniform heat distribution across the solder joint. The coil is mounted in a specially engineered fixture that guarantees a repeatable and rigid coil position, eliminating variations in the electromagnetic coupling between the coil and the component.
Closed-Loop Temperature Control
To maintain precise thermal control, ISM Maxwell uses an Optris pyrometer capable of reading the temperature up to 500 times per second. This high sampling rate feeds a real-time PID control that continuously adjusts the generator output, creating a true closed-loop temperature control system. Unlike traditional time-based or power-based soldering, Maxwell dynamically follows a programmed thermal curve, making the process highly repeatable and independent of coil wear or part variability.
Vision Inspection and Quality Monitoring
Quality assurance is handled by a Keyence vision system that monitors the component before and after soldering. The system verifies component presence, correct alignment, cleanliness, and final solder quality. All inspection images are automatically archived together with thermal profile data, giving engineers a complete history of every soldering cycle.
Data Logging and Full Traceability

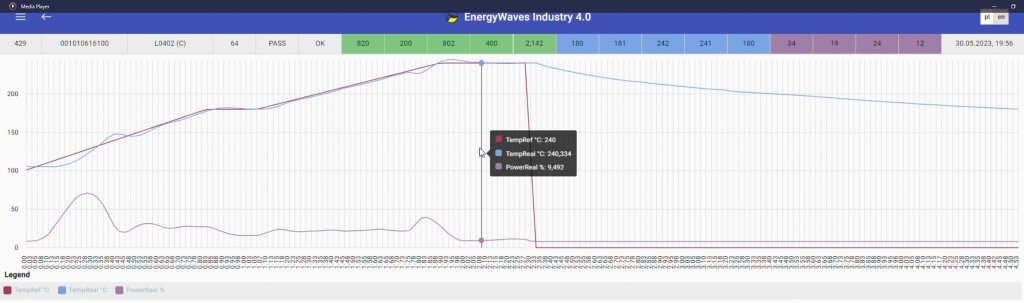

Every soldering cycle’s temperature profile is stored in a local database. This provides complete product traceability and allows engineers to instantly access historical process data for trend analysis, optimization, or root-cause investigations. The combination of thermal curves and vision images forms a powerful diagnostic tool that significantly simplifies process engineering.
User Interface and Operator Guidance
A 22-inch industrial HMI serves as the operator interface, providing intuitive access to recipes, diagnostics, alarm history, and real-time temperature visualization. The system includes a comprehensive set of poka-yoke mechanisms. QR code validation ensures the correct fixture, soldering head, and program are always selected, eliminating human error and simplifying production management.
Access Control and Production Security
Operator authentication is handled through RFID using workers’ existing badges. This removes the need for extra cards and ensures controlled, auditable access to machine functions. The system automatically logs user actions, contributing to traceability and compliance with production standards.
Simplified Tooling and Reduced Changeover Time
The engineering behind ISM Maxwell significantly reduces tooling complexity. Due to the optimized induction coil design and the consistency provided by closed-loop control, the machine requires only two coil types for the entire RF connector range. This reduces changeover time, minimizes spare part requirements, and simplifies inventory management.
Integration and Deployment in Production Lines
ISM Maxwell is designed for effortless integration into modern factories. With Ethernet connectivity, real-time data access, and a small installation footprint, the machine fits easily into existing production lines. Its combination of closed-loop induction heating, high-precision motion control, and advanced quality monitoring makes it one of the most capable RF connector soldering solutions available on the market.
